Product Details



SSR Series With terminal 50-480V 12A Solid State Relay SSR Series With terminal 50-480V 12A Solid State Relay

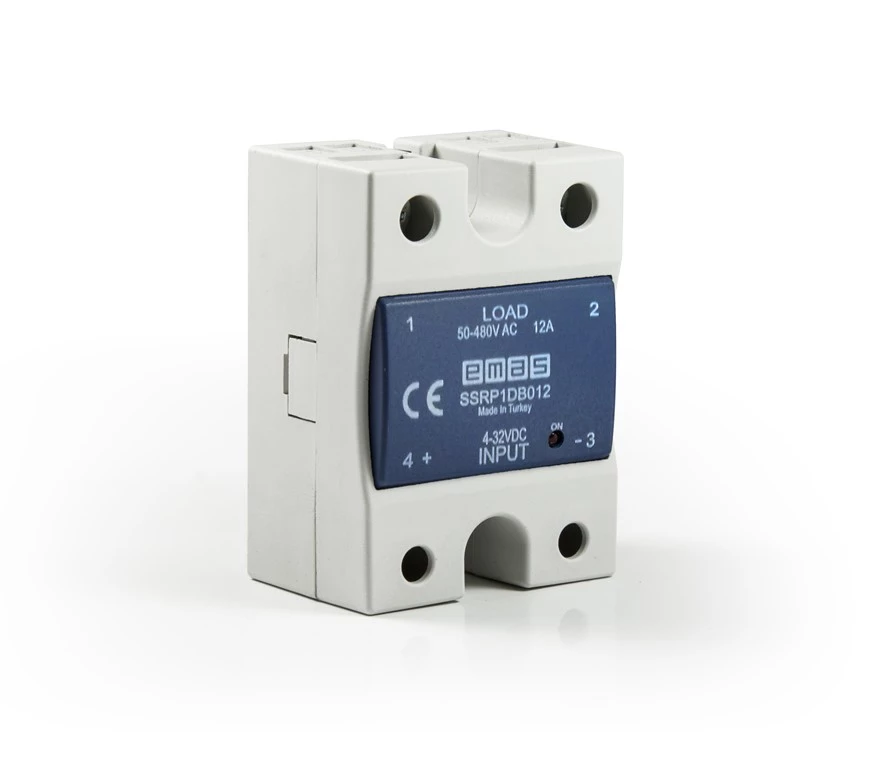

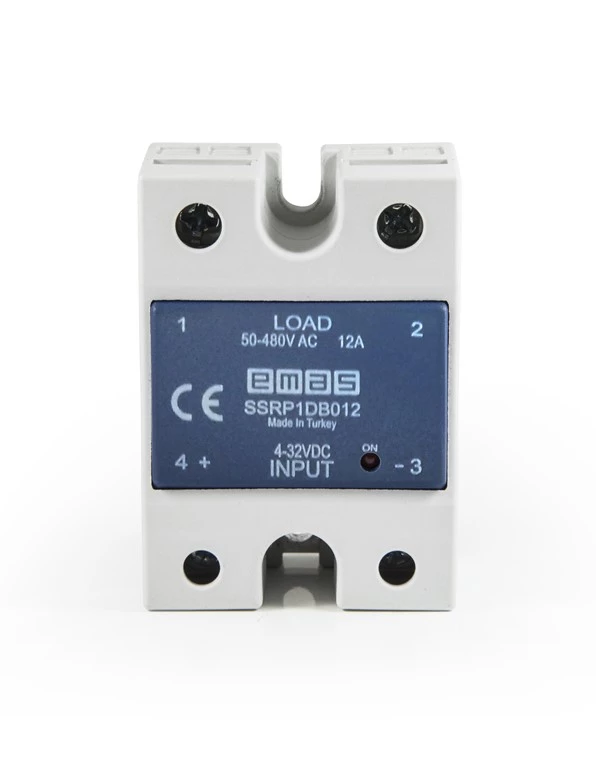

SSR Series With terminal 50-480V 12A Solid State Relay

Product Code
SSRP1DB012
Certificate
CE UKCA
Downloads
  • Compact design
  • Fast and silent switching
  • Long life
  • Fingerproof design
SSR Series With terminal 50-480V 12A Solid State Relay
SSR Series With terminal 50-480V 12A Solid State Relay
Weight (Net) (Gr)
95gr
Connection Type
With terminal
Operational Voltage
50-480V
Product
Solid State Relay
Current (Ie)
12A
Operating Temperature
-25 / +70 °C (without condensation and frosting)
Storage Temperature
-30 / +100 °C (without condensation and frosting)
Protection Degree
IP20
Screw Torque
For control line; 1,2Nm For load line; 2,2Nm
Cable Section for Input Terminal
1,5mm²
Cable Section for Load Terminal
1,5mm²
Indicator
LED
Min. Load Current
200mA
Control Voltage
4-32V DC
Min. Switching On Voltage
4V DC
Min. Switching Off Voltage
3.0V DC
Insulation Voltage (between input-output)
2500Vrms
Min. Input Current
5mA
Max. Output Current
15mA
Max. Load Current (RMS) (AC51)
12A
Load Voltage (RMS)
50-480V AC
Load Frequency
50-60Hz
Non-repetitive Surge Current F=50Hz, t=10ms, Tj=25°C
120A
Maximum Voltage Drop
1,8V
For Fuse I²t ( for Max. 0,5 period Tj=25 °C)
72 A²sec
Serial
SSR Series
