Product Details



CSM Series 180° 1 forward-1 reverse 300 mm Rod Cross Limit Switch CSM Series 180° 1 forward-1 reverse 300 mm Rod Cross Limit Switch CSM Series 180° 1 forward-1 reverse 300 mm Rod Cross Limit Switch

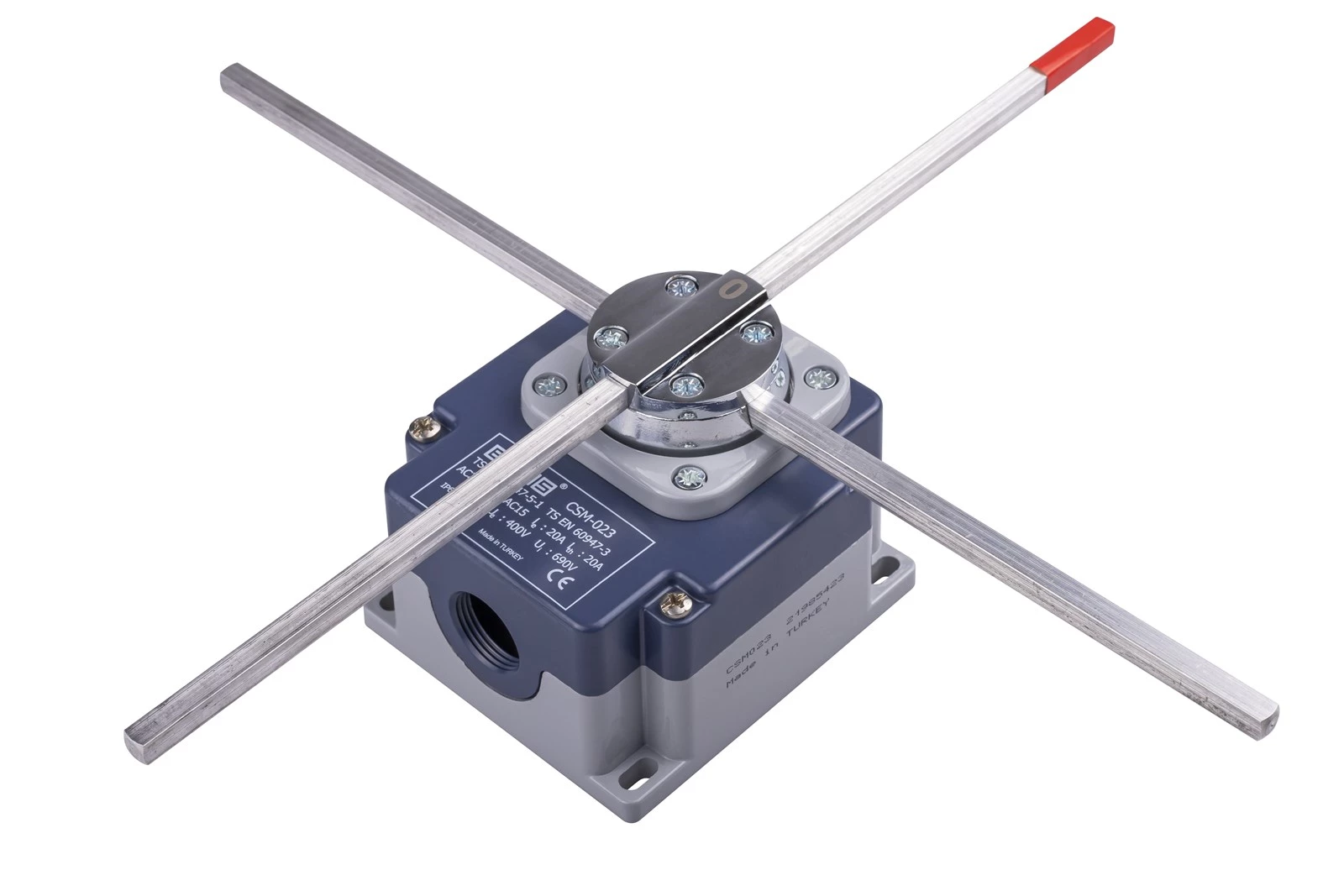

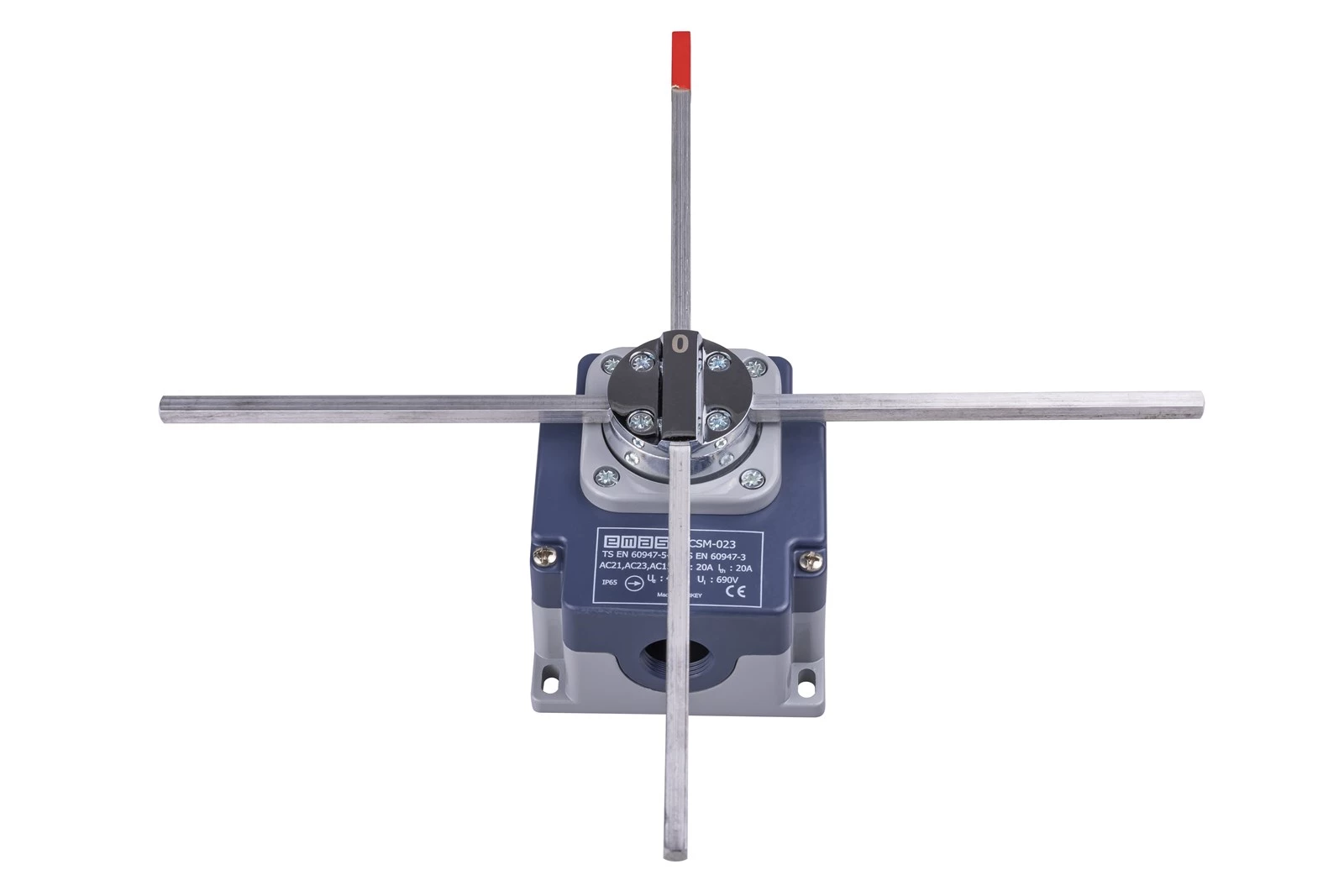

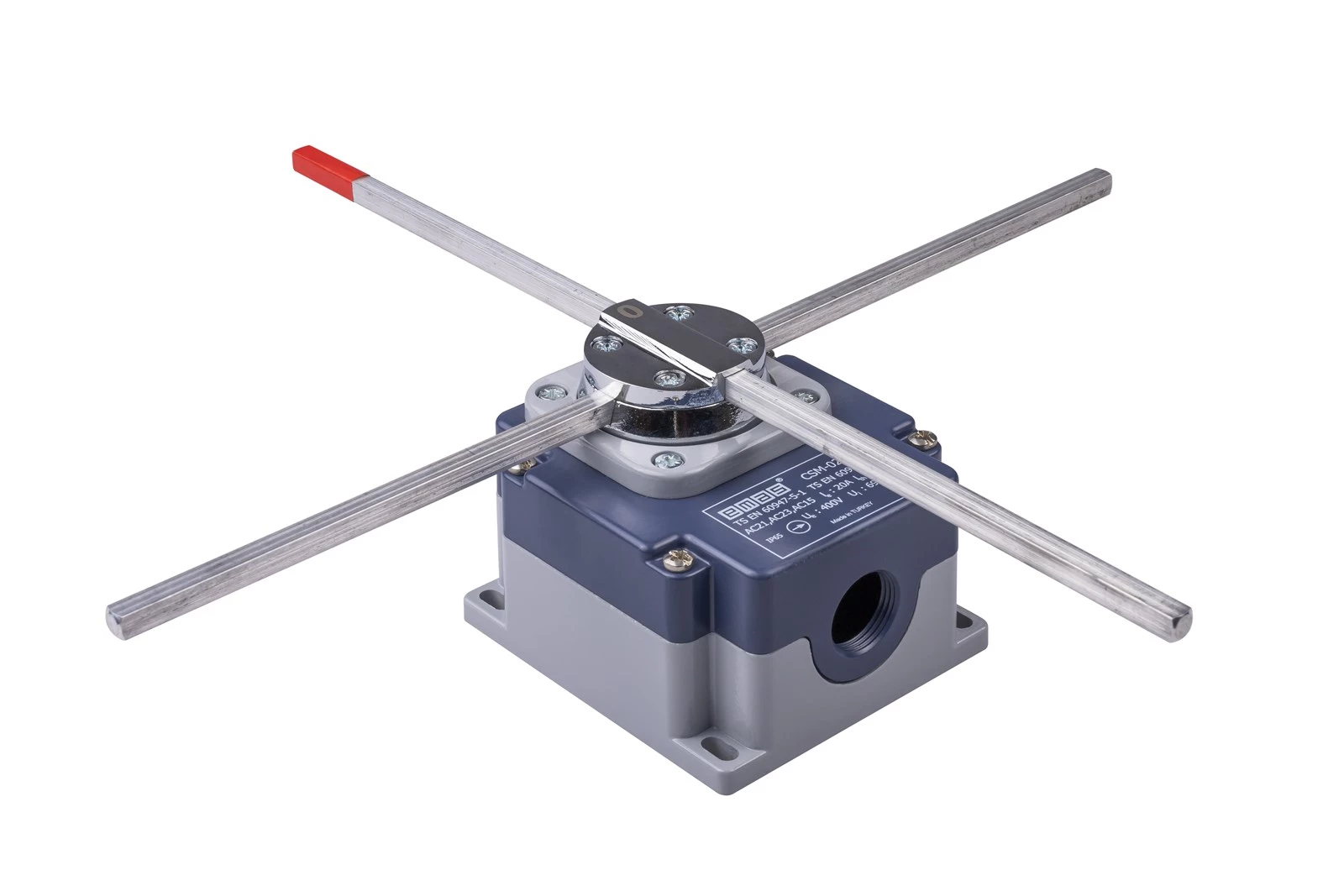

CSM Series 180° 1 forward-1 reverse 300 mm Rod Cross Limit Switch

Product Code
CSM023
Standard
TS EN 60947-3
Certificate
CE EAC SEPRO
Certificate
(Contact Block)
TSE
Downloads
  • Metal housing and cover
  • PG13,5 connection
CSM Series 180° 1 forward-1 reverse 300 mm Rod Cross Limit Switch
CSM Series 180° 1 forward-1 reverse 300 mm Rod Cross Limit Switch
CSM Series 180° 1 forward-1 reverse 300 mm Rod Cross Limit Switch
Product
Cross Limit Switch
Type
180°
Feature
300 mm Rod
Current (Ie)
20 A (400V AC)
Usage Category
AC21A
Mechanical Life (Min Qty)
50000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech. 120 Elec. 120
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
4 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-25 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1-2,5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
6kA
Serial
CSM Series
Speed
1 forward-1 reverse
