Product Details



PV Series 5 Hole Single-Double Speed 1NC Emergency Stop Crane Pendant Station

PV Series 5 Hole Single-Double Speed 1NC Emergency Stop Crane Pendant Station

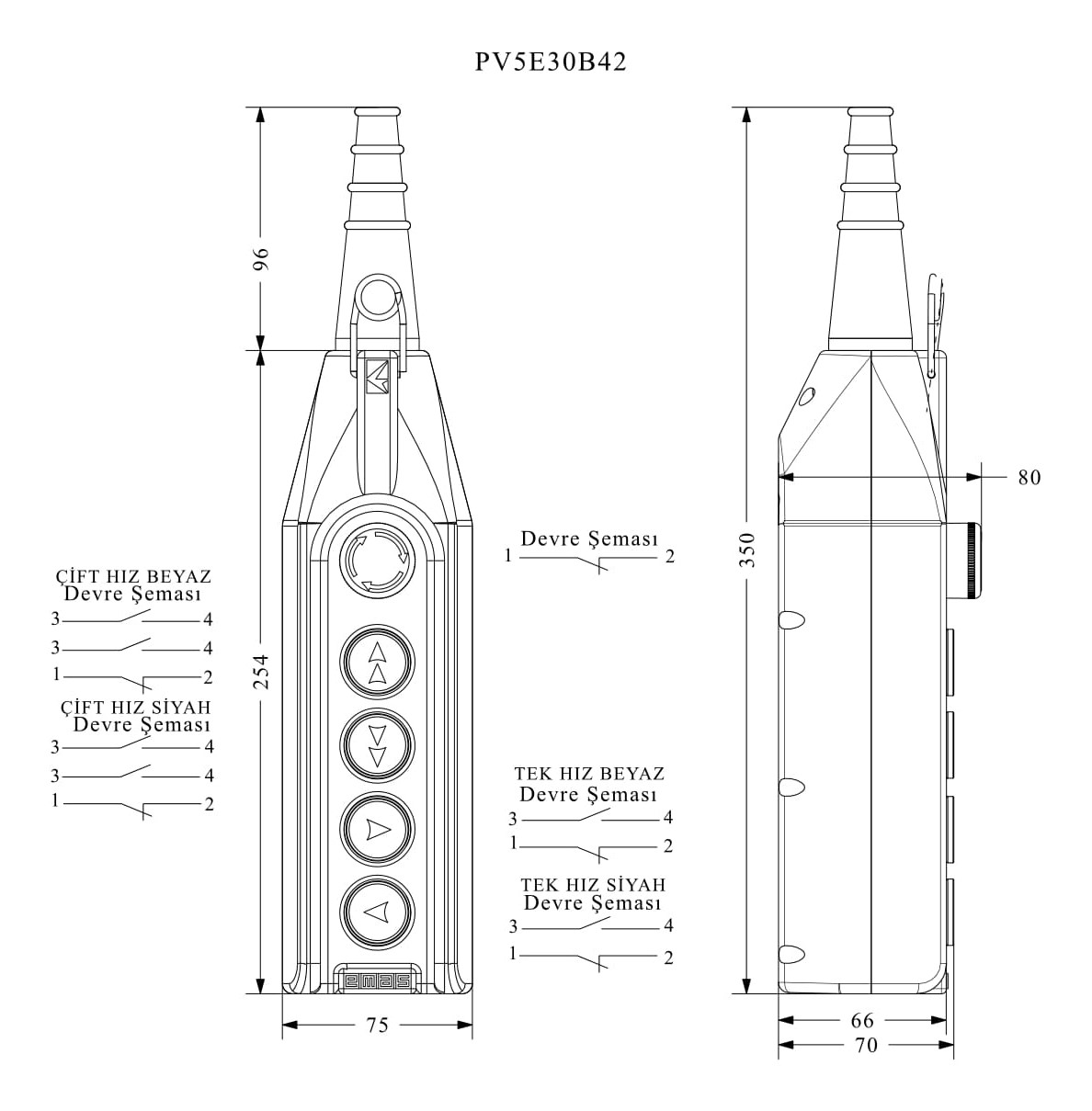

Product Code
PV5E30B42
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO
Certificate
(Contact Block)
TSE VDE
Downloads
  • Aesthetic look and ergonomic usage with assistance of ABS reinforced material
  • Mechancial interlock
  • Single and double speed
PV Series 5 Hole Single-Double Speed 1NC Emergency Stop Crane Pendant Station
Product
Crane Pendant Station
Type
5 Hole
Contact
1NC
Current (Ie)
4A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 900 Elec. 900
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
PV Series
Speed
Single-Double Speed
1.Hole
Emergency Stop
