Product Details



VT Series 1/50 4 switch 4*CO 20° Rotational Limit Switch VT Series 1/50 4 switch 4*CO 20° Rotational Limit Switch VT Series 1/50 4 switch 4*CO 20° Rotational Limit Switch

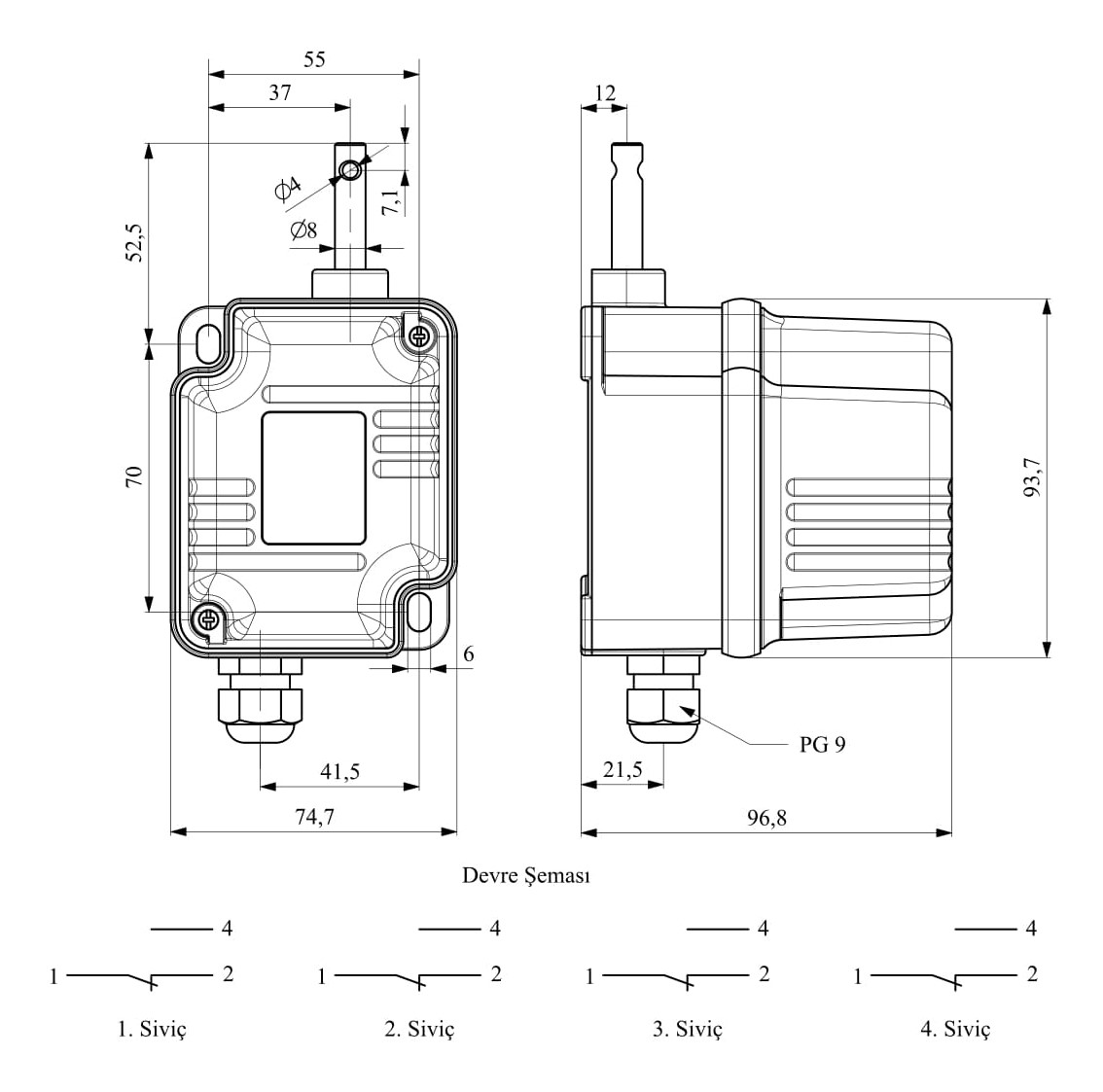

VT Series 1/50 4 switch 4*CO 20° Rotational Limit Switch

Product Code
VT4050
Standard
TS EN 60947-5-1
Certificate
CE EAC SEPRO
Certificate
(Contact Block)
TSE
Downloads
  • High impact strength
  • V0 and Long Life Micro Switches
VT Series 1/50 4 switch 4*CO 20° Rotational Limit Switch
VT Series 1/50 4 switch 4*CO 20° Rotational Limit Switch
VT Series 1/50 4 switch 4*CO 20° Rotational Limit Switch
Product
Rotational Limit Switch
Type
1/50
Contact
4*CO
Current (Ie)
10 A (250V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 120 Elec. 120
Insulation Voltage (Ui)
660V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP67
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
VT Series
Speed
4 switch
Cam
20°
