Product Details



Z Series Socket Single Entry Transparent-Black Elevator Door Switch Z Series Socket Single Entry Transparent-Black Elevator Door Switch

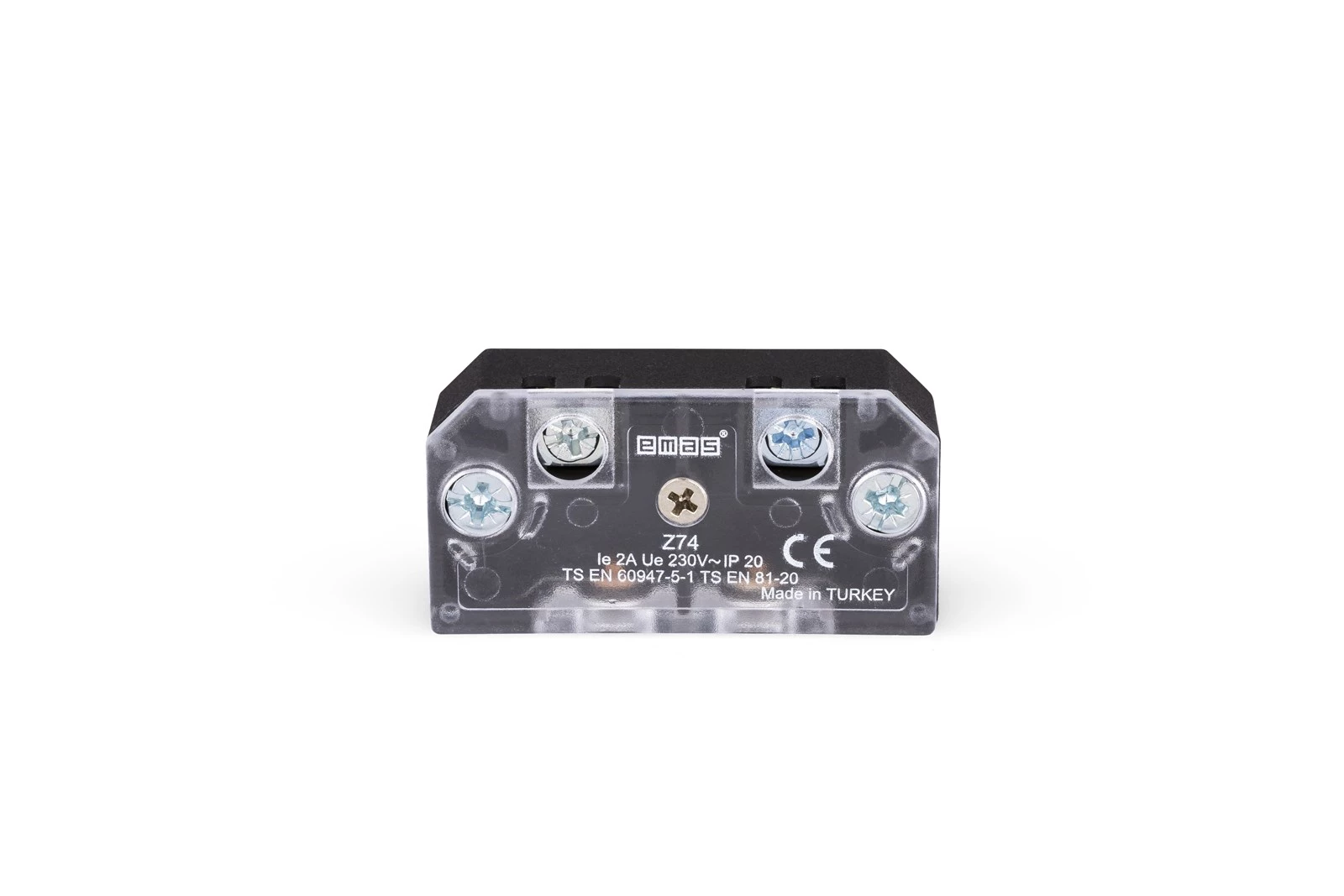

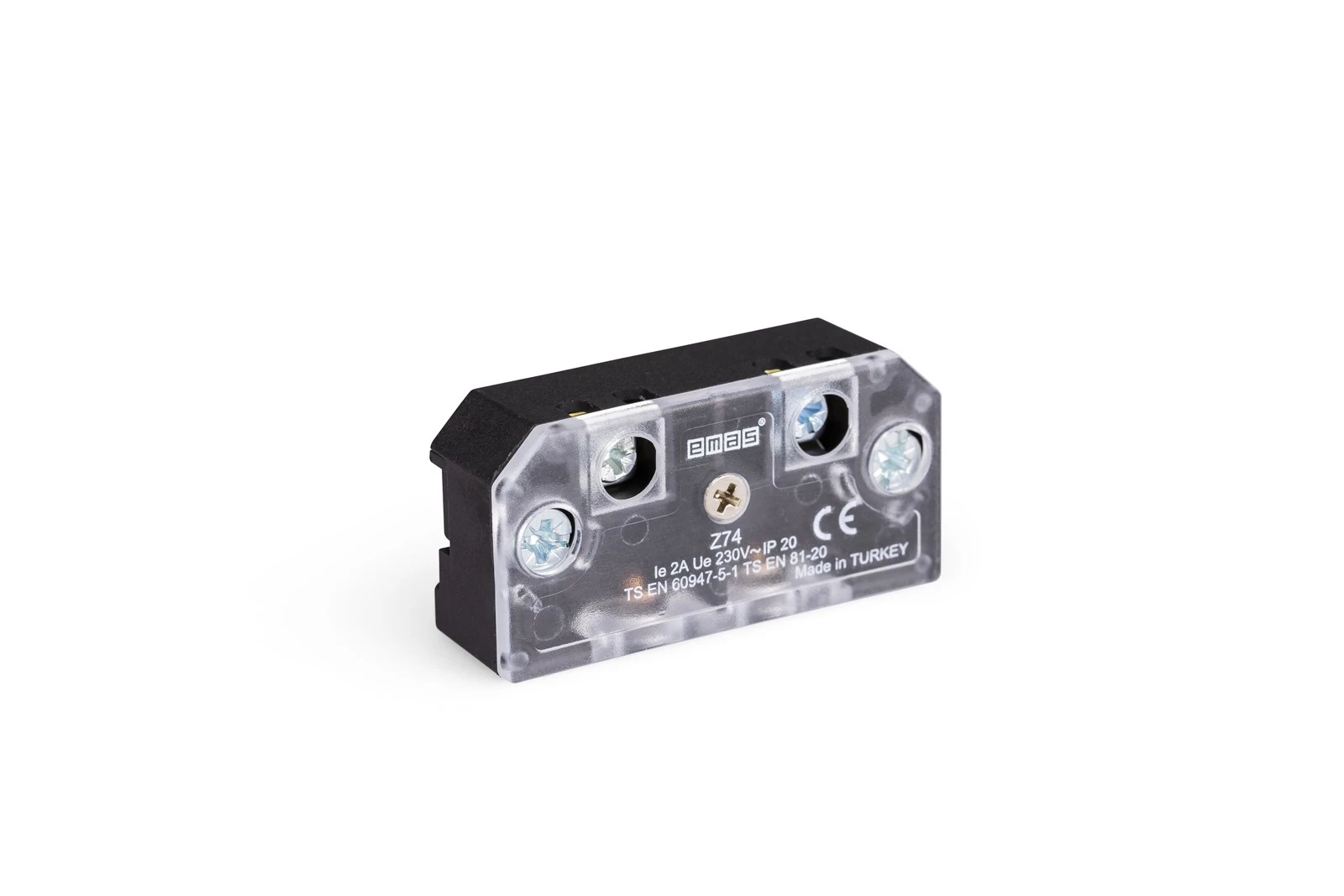

Z Series Socket Single Entry Transparent-Black Elevator Door Switch

Product Code
Z74O1
Standard
TS EN 60947-5-1 TS EN 81-20
Certificate
CE EAC LIFTINSTITUUT SEPRO
Downloads
    Z Series Socket Single Entry Transparent-Black Elevator Door Switch
    Z Series Socket Single Entry Transparent-Black Elevator Door Switch
    Product
    Elevator Door Switch
    Color
    Transparent-Black
    Current (Ie)
    2A (230V AC)
    Usage Category
    AC15
    Mechanical Life (Min Qty)
    5000000
    Electrical Life (Min Qty)
    1000000
    Operating Frequency (On-Off/Hour)
    Mech. 3000 Elec. 1200
    Insulation Voltage (Ui)
    500 V
    Impulse Withstand Voltage (Uimp)
    4 kV
    Dielectric Strength (Body-Contact)
    2.500V AC
    Dielectric Strength (Contact-Contact)
    1.890V AC
    Isolation Resistance
    10 MΩ (500 V DC)
    Operating Temperature
    -15 / + 80 °C
    Pollution Degree
    3
    Protection Degree
    IP20
    Contact Material
    AgNi
    Cable Section
    1-2.5 mm2
    Screw Torque
    0,8Nm
    Short Circuit Breaking Capacity (Ics)
    1kA
    Serial
    Z Series
    Ingredients
    Socket Single Entry
